Inverse Kinematics (IK)
The inverse kinematic problem

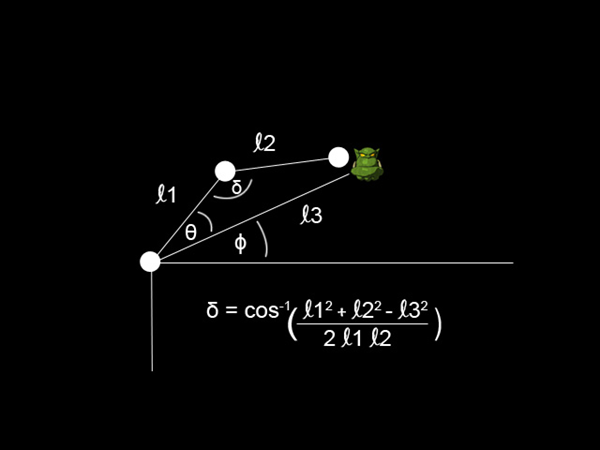

The inverse kinematic formula

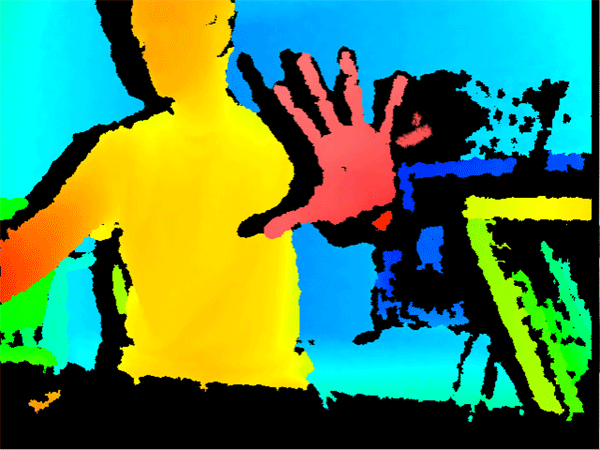

The goal of this project was to see if IK would be a viable option for hand detection when using the kinect camera.
Inverse kinematics refers to the use of mathematical equations to determine the joint angles of a structure that provide a desired position of the end-effector.

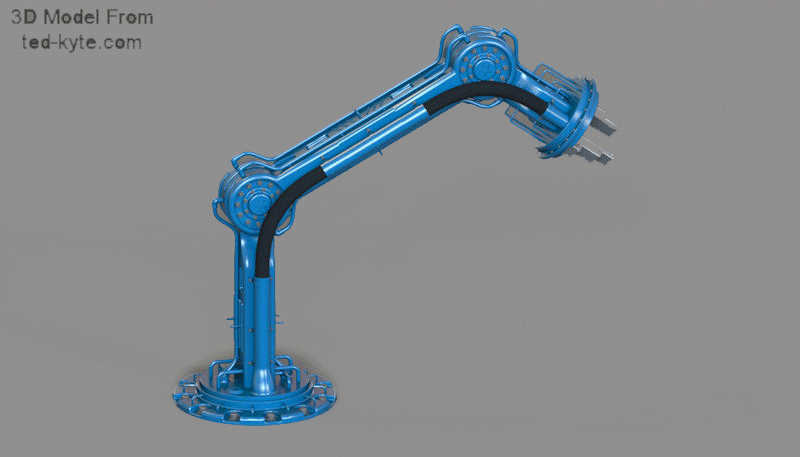

In other words, you have a structure, such as a robotic arm, that has a base (or origin) and a point of significance (an end-effector), with the intention of moving the end-effector towards some goal. In order to determine the best way for an end-effector to reach its target location, a variety of mathematical calculations can be used to determine the best angles for each of the joints in the structure. There are many ways to perform these calculations, each with their own set of advantages and disadvantages.
The application I built in cpp, using the ORGE 3D framework, uses a simple method for calculating the IK values. In this application the Ogre's head is the target that can be moved by the user. A limb is represented as a series of lines and the spheres represent the joints. The end effector attempts to reach the target wherever the target may be.

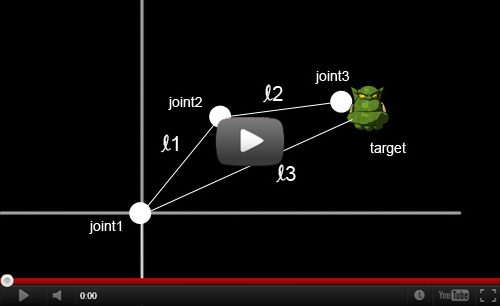

Here is a brief overview of the project in the form of a Youtube video:
